As a captive portal provider we often face the situation where a customer has a Unifi network which is behind a dynamic IP and NAT. An external captive portal needs to communicate with the Unifi controller via API in order to authorize guests. This requires a static public IP on the Unifi gateway device, which is often not available. To get around this situation, it’s possible to set up a Wireguard client on the Unifi gateway device (such as UniFi Dream Machine, UniFi Express, UniFi Cloud Gateway etc.). This is a simpler solution compared to others such as Dynamic DNS (often a paid service) and port forwarding (might not be possible in all scenarios, such as CGNAT).
In this post we’ll see how we can set up a Wireguard server on an Ubuntu machine and configure a Unifi gateway device as a Wireguard client.
The Ubuntu server - which in our case is the external captive portal server which needs to be able to communicate with the Unifi gateway - will be set up as the Wireguard Server.
For reference, here is the IP scheme that we’ll be using:
- WireGuard Server: 172.16.0.1
- UCG = WireGuard Client: 172.16.0.3
- Tunnel Network = 172.16.0.0/24
- Port = UDP/51820
On Ubuntu Server
Install Wireguard:
Generate keys for server and client:
wg genkey | tee wg-server.key | wg pubkey > wg-server.pub
wg genkey | tee client.key | wg pubkey > client.pub
- wg-server.key → Private key for Ubuntu server
- wg-server.pub → Public key for Ubuntu server
- client.key → Private key for Unifi client
- client.pub → Public key for Unifi client
Create server’s config file:
nano /etc/wireguard/wg0.conf
Enter these details:
[Interface]
Address = 172.16.0.1/24
ListenPort = 51820
PrivateKey = <wg-server.key>
# Enable forwarding when tunnel is up
PostUp = iptables -A FORWARD -i wg0 -j ACCEPT;
PostDown = iptables -D FORWARD -i wg0 -j ACCEPT;
[Peer]
PublicKey = <client.pub>
AllowedIPs = 172.16.0.3/32
PersistentKeepalive = 25
Create client’s config file:
Enter these contents in it:
[Interface]
Address = 172.16.0.3/32
DNS = 8.8.8.8
PrivateKey = <client.key>
[Peer]
PublicKey = <wg-server.pub>
Endpoint = <ubuntu-public-ip>:51820
AllowedIPs = 172.16.0.1/32
PersistentKeepalive = 25
Start the Wireguard server wg0 interface and enable it:
systemctl start wg-quick@wg0.service
systemctl enable wg-quick@wg0.service
View interface status:
On Unifi Gateway

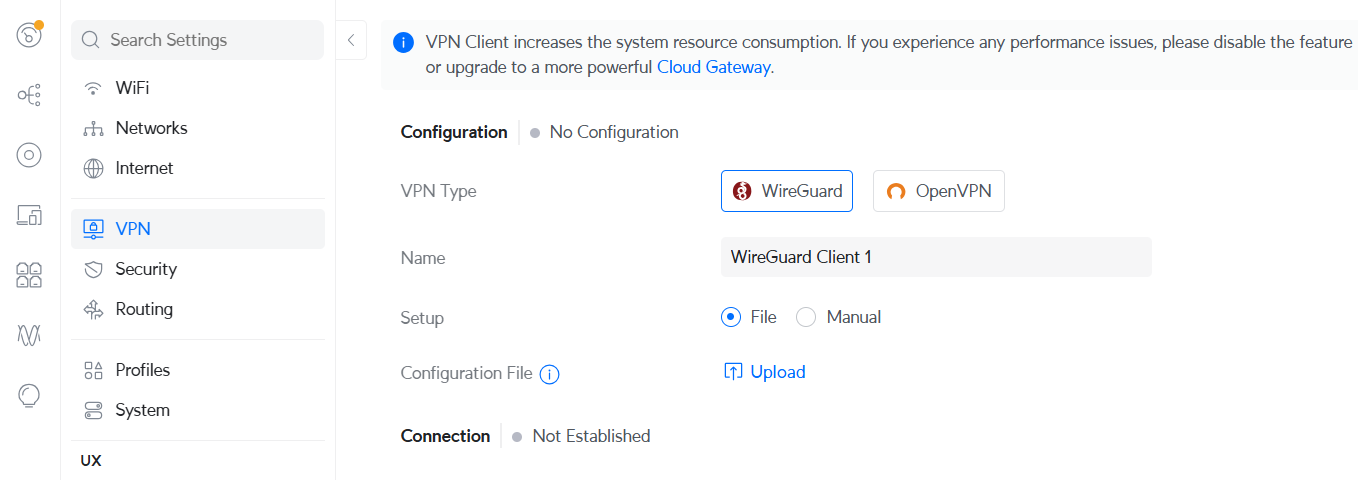

On Unifi gateway device go to Settings > VPN. VPN Type will be Wireguard. Upload the configuration file client.conf that was created earlier.

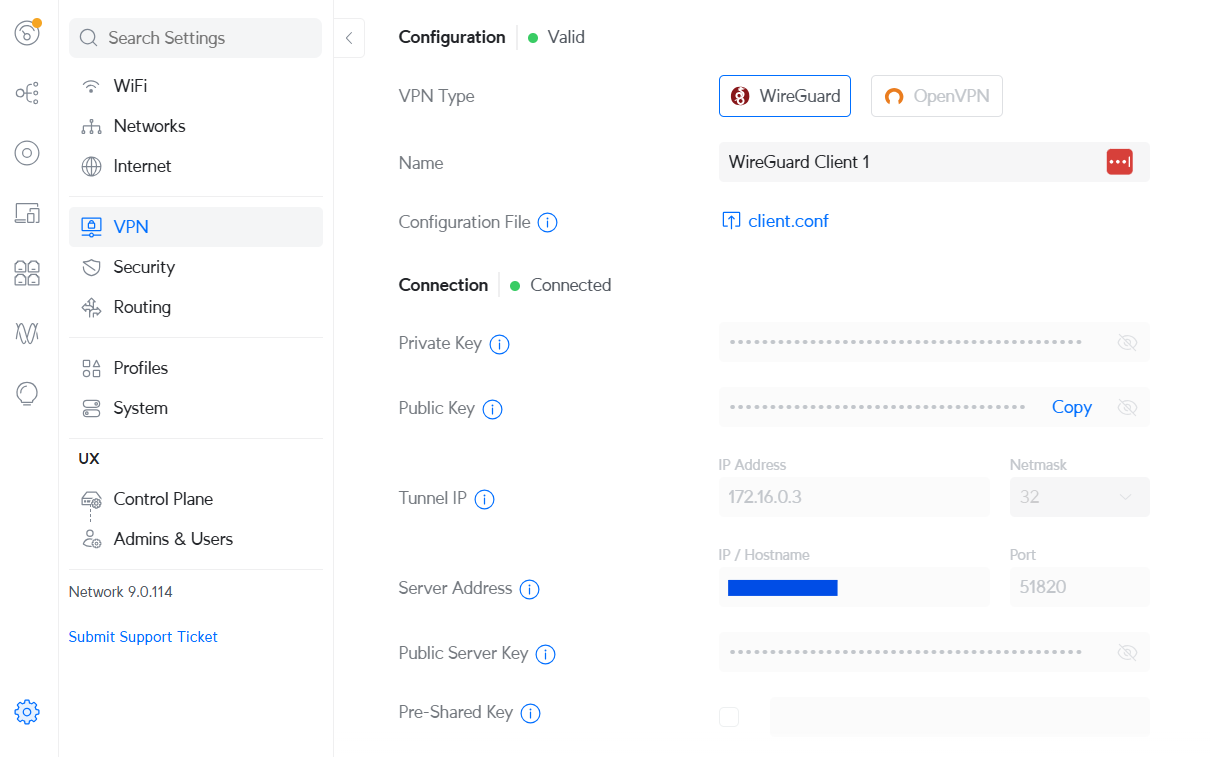

Upon connection its status should appear like this:

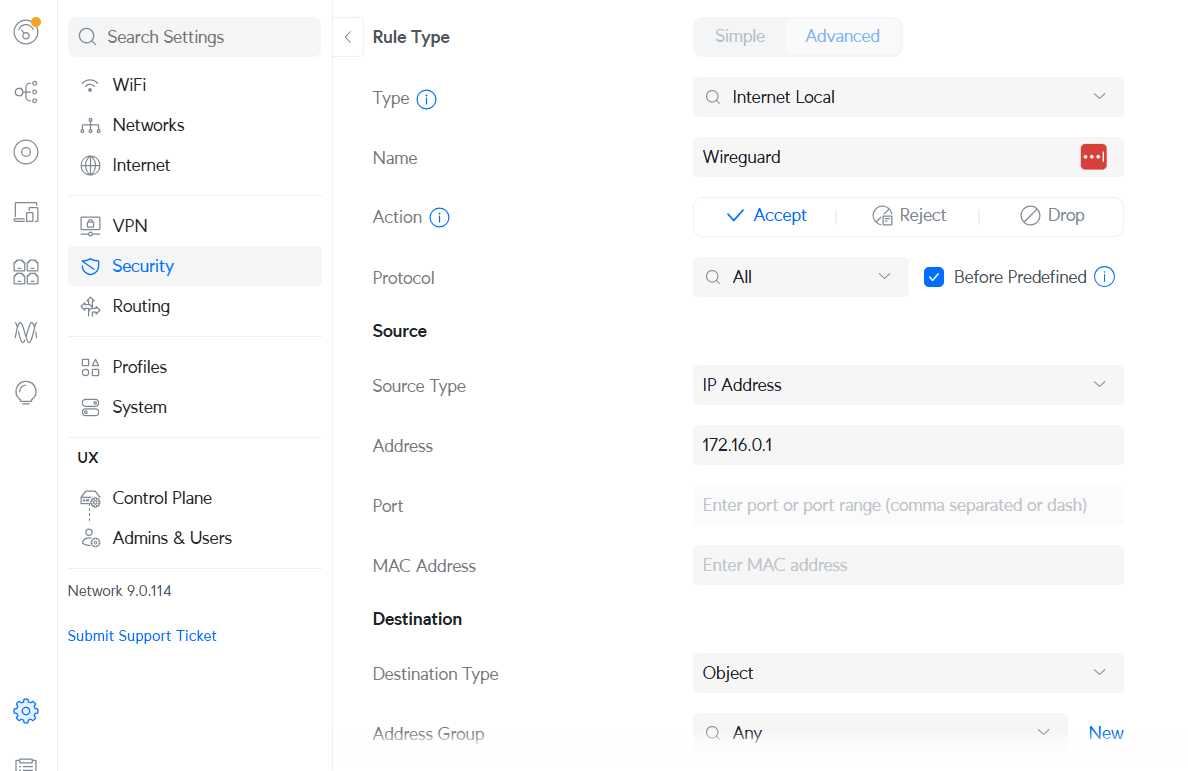

A firewall rule needs to be added to allow the server to communicate with the client. Go to Settings > Security and add an Advanced rule. Type should be Internet Local and should allow traffic from the source IP of 172.16.0.1 which is the Wireguard server’s IP in our case.
