Passpoint Setup Guide using FreeRADIUS and Mikrotik

People are often wary of using public Wi‑Fi because it lacks security. Captive portals, open authentication, and shared passwords make public networks vulnerable and inconvenient. Passpoint (Hotspot 2.0) solves this problem by enabling enterprise‑grade Wi‑Fi security while allowing users to connect automatically, without landing pages or manual login prompts. In this guide, we configure Passpoint using MikroTik and FreeRADIUS, and then generate Passpoint profiles for Android and iOS.

screenshot

A 802.11u supported MikroTik AP (Mikrotik cAP ac in our case) will work as a Passpoint (Hotspot 2.0) access point and forward authentication requests to the RADIUS server.

Mikrotik Setup:

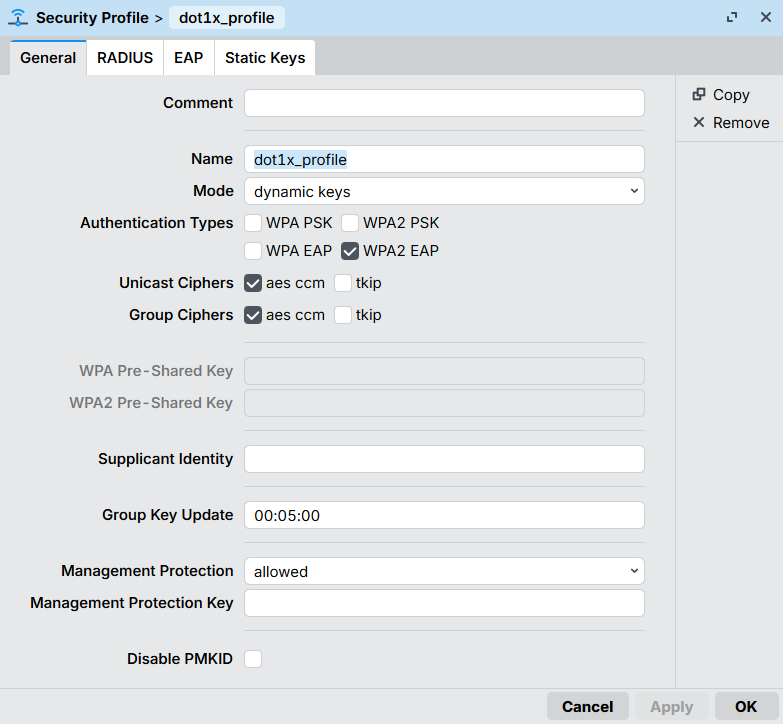

First we’ll go to Wireless > Security Profiles and create a new Security Profile. These settings are configured:

screenshot

(Optional): Go to RADIUS tab and enable EAP accounting and Interim Updates if required.

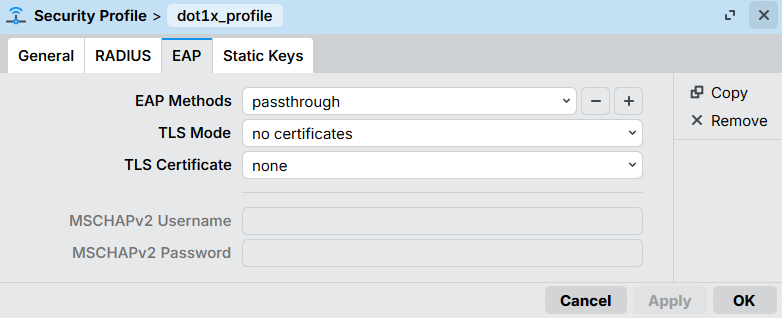

In EAP tab use these settings:

screenshot

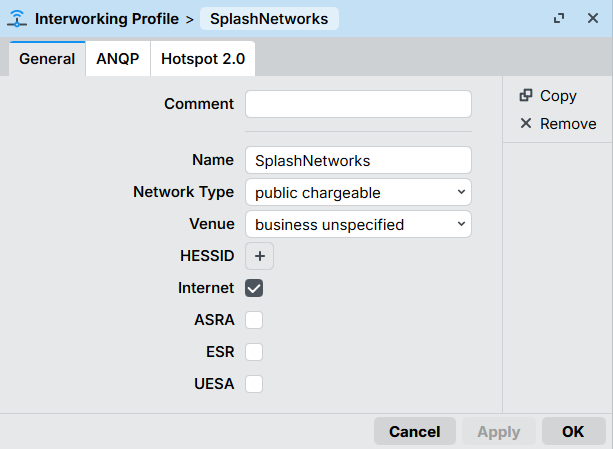

Click Ok to save the profile. Then go to Wireless > Interworking Profile and create a new profile. Give it a name, select a Network and Venue Type and select Internet.

screenshot

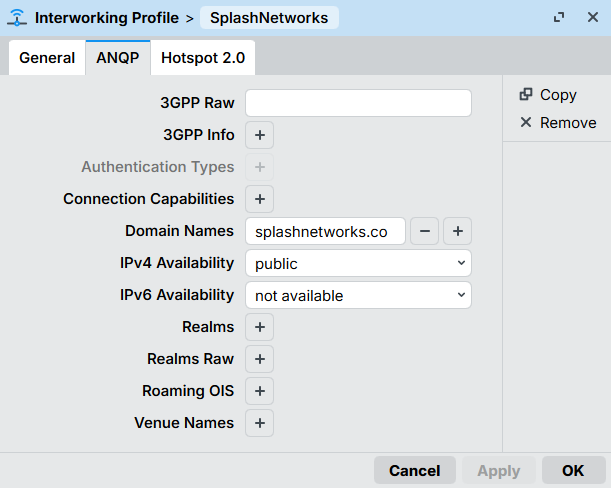

In ANQP (Access Network Query Protocol) we will define the domain name of this Passpoint network. The same domain name will be configured in the Passpoint profile which will be installed in Wi-Fi client devices. When the domain and settings match the device will be able to connect automatically. The configuration will be like this:

screenshot

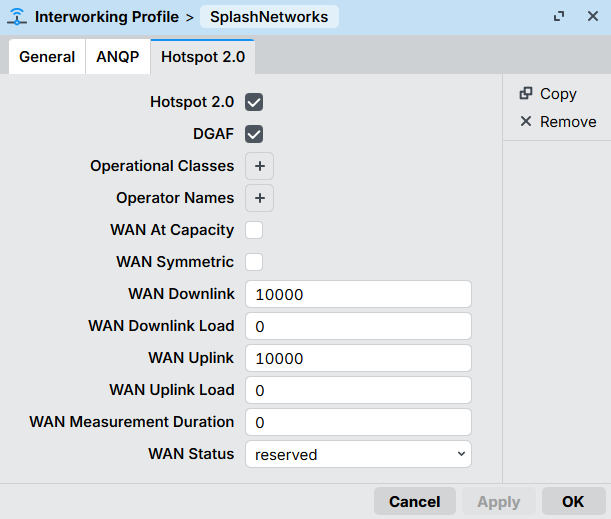

In Hotspot 2.0 tab we will enable Hotspot 2.0 and set WAN Downlink and WAN Uplink speeds (in kbps):

screenshot

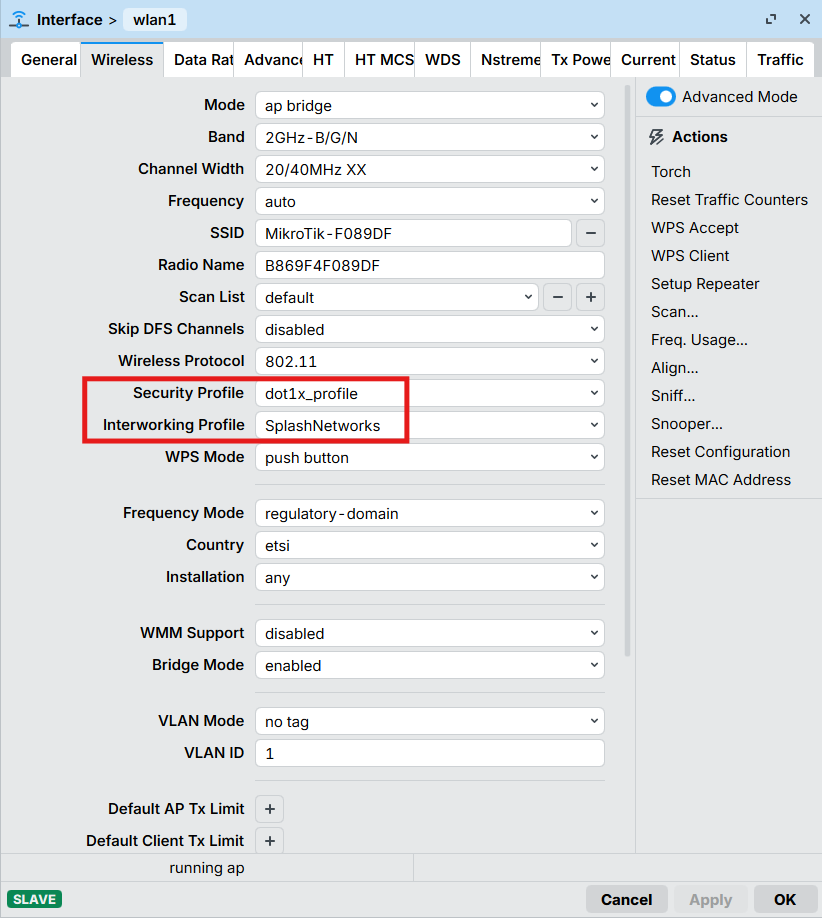

Next we will go to WiFi Interfaces and either create a new SSID or modify an existing SSID. We will select the Security Profile and Interworking Profile we created earlier.

screenshot

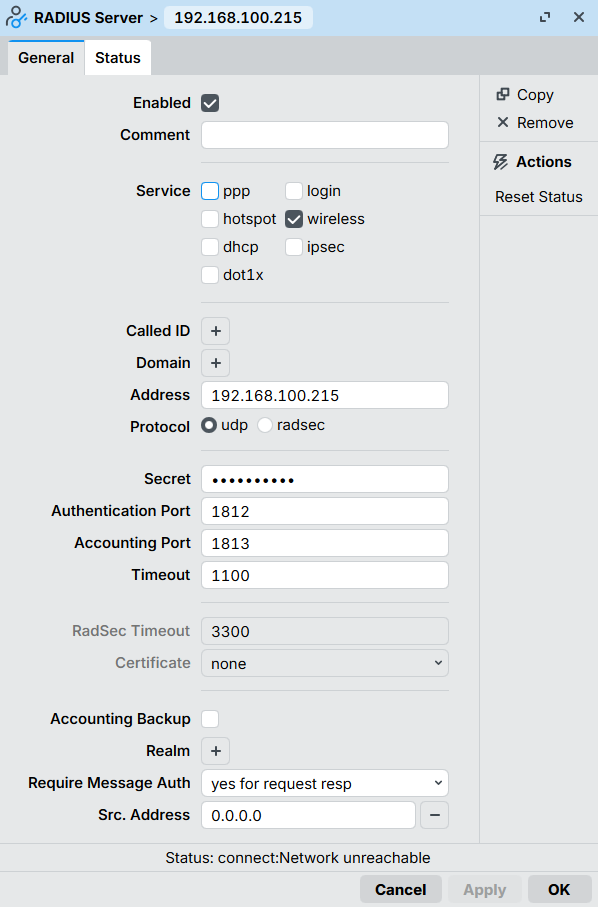

Then we will add a RADIUS server. In Service wireless will be checked. We will specify the IP address and Secret of our RADIUS server (setup details given below).

screenshot

Once this is completed, MikroTik is ready to hand off authentication requests securely to the RADIUS server.

FreeRADIUS Setup

FreeRADIUS handles user authentication and certificate validation for Passpoint clients.

Install FreeRADIUS and its required packages:

apt-get install -y freeradius freeradius-mysql freeradius-utils

Next, use a text editor like nano to edit /etc/freeradius/3.0/clients.conf:

nano /etc/freeradius/3.0/clients.conf

Add the following lines at the end (replace testing123 with a more secure secret):

client all {
       ipaddr          = 0.0.0.0/0
       secret          = testing123
}

Use Ctrl + X to save and exit.

Create a user for testing:

nano /etc/freeradius/3.0/users

Add this entry at the top:

"testuser" Cleartext-Password := "testpass"

Save and exit. This account will be used to verify authentication before moving to real user databases.

Generate RADIUS Certificates

Passpoint relies on certificates to establish trust between the client and the network. To generate a self-signed CA certificate (which is what is recommended for RADIUS deployments) navigate to the certs directory:

cd /etc/freeradius/3.0/certs

We will execute the bootstrap script. This initializes the certificate structure used by FreeRADIUS:

chmod +x bootstrap
./bootstrap

Next open the CA configuration file:

nano /etc/freeradius/3.0/certs/ca.cnf

In CA_default section increase the number of days so that the certificate will be valid for a long time (10 years in this case):

default_days            = 3650

In req section change the input_password and output_password from their default values:

input_password          = tj367tHXVK
output_password         = tj367tHXVK

In certificate_authority section enter your organization’s information:

countryName             = US
stateOrProvinceName     = NM
localityName            = Albuquerque
organizationName        = Splash Networks
emailAddress            = hello@splashnetworks.co
commonName              = "Splash Certificate Authority"

Save and exit.

Run the following commands to generate CA certificates:

make ca.pem

Convert the ca.pem file to .cer format as that will be required later:

openssl x509 -in ca.pem -outform DER -out ca.cer

Next generate server certificate by following a similar procedure:

nano /etc/freeradius/3.0/certs/server.cnf

Change default_days to a large value, input_password and output_password from their default values and enter your organization’s information in server section. Make sure the commonName entered here is the Passpoint Domain Name defined in Mikrotik settings. If these values do not match, clients will reject the connection:

default_days            = 3650

input_password          = tj367tHXVK
output_password         = tj367tHXVK

[server]
countryName             = US
stateOrProvinceName     = NM
localityName            = Albuquerque
organizationName        = Splash Networks
emailAddress            = hello@splashnetworks.co
commonName              = "splashnetworks.co"

Save and exit.

Generate server certificate by running this command:

make server.pem

Ensure generated files have the right ownership:

chown freerad:freerad /etc/freeradius/3.0/certs/*

EAP Module Config

Open the eap module config file:

nano /etc/freeradius/3.0/mods-enabled/eap

In eap section default EAP type is set to ttls.

default_eap_type = ttls

Inside TTLS, authentication is tunneled using pap. Enter this in ttls section:

default_eap_type = pap
copy_request_to_tunnel = yes

Add the paths of newly generated certificates in tls-config tls-common section:

private_key_password = tj367tHXVK
private_key_file = /etc/freeradius/3.0/certs/server.key
certificate_file = /etc/freeradius/3.0/certs/server.pem
ca_file = /etc/freeradius/3.0/certs/ca.pem

Save and exit.

Restart FreeRADIUS service:

systemctl restart freeradius

Generating Passpoint Profiles

Client devices require Passpoint profiles to connect automatically. Use this tool to generate Passpoint profiles for Android and iOS.

Usage

Generating Profiles

Run the following command to start a wizard for generating Passpoint profiles. The ca.cer file that was generated earlier will need to be put into the certificate folder.

python main.py

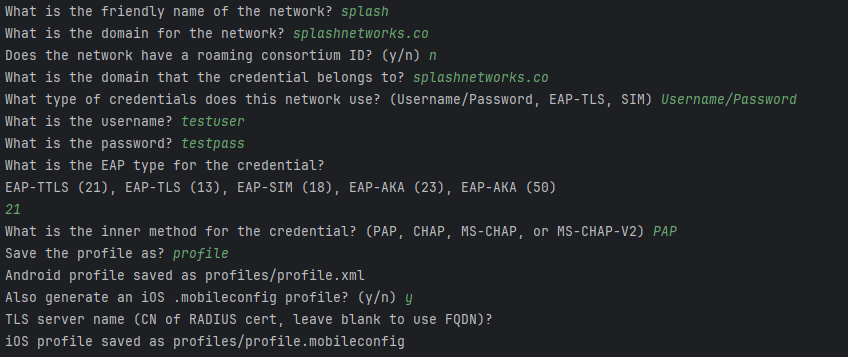

A wizard will start. We can fill the prompts in this way to generate profiles:

screenshot

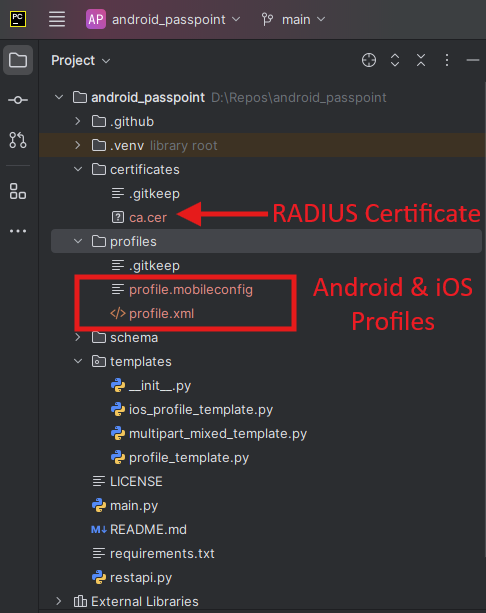

The profiles will be saved in the profiles folder:

screenshot

Installing Profiles

For installing profile in mobile devices some common options are:

  1. Mobile app
  2. MDM (Mobile Device Management) solution
  3. Downloading via a web server

We will use the third approach. A temporary web server can be created with the help of the same tool to host the profile. Clients can then navigate to it on their browser - Chrome/Safari on Android/iOS - to download and install the profile.

Start web server using this command (replace 0.0.0.0 with the IP address of the host machine):

python -m uvicorn --host 0.0.0.0 restapi:app

Uploading to Android

Using Chrome navigate to:

http://{serverIP}:8000/passpoint.config?profile={profile.xml}&certificate={certificate}

This should prompt you to install the profile. If there was any error the Android device will return a generic error.

The process of installing profile on Android and getting connected can be seen here:

Uploading to iOS

Using Safari navigate to:

http://{serverIP}:8000/passpoint.mobileconfig?profile={profile.mobileconfig}

There will be an option to install the profile.

An example can be seen in this video:
